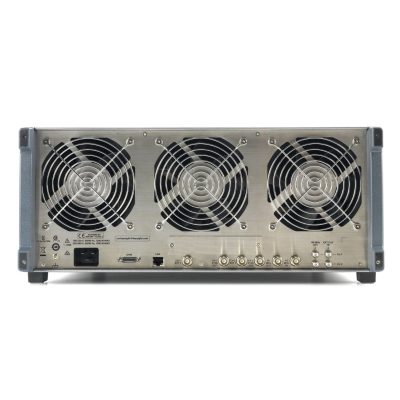

M9384B VXG là thiết bị tạo tín hiệu microwave của Keysight Technologies, có khả năng phát tín hiệu từ 1 MHz đến 44 GHz. Thiết bị cung cấp tín hiệu với độ tinh khiết cao, hỗ trợ nhiều định dạng modul hóa và tích hợp dễ dàng vào hệ thống kiểm tra tự động.
M9384B VXG là máy phát tín hiệu vi sóng kênh đôi đầu tiên trong ngành có khả năng truyền tín hiệu lên đến 44 GHz.
Tính năng:
M9384B VXG thích hợp cho các ứng dụng kiểm tra RF và microwave trong nghiên cứu, phát triển, và sản xuất.
Phụ kiện:
Channel 1
M9384B-001 Add channel 1
Bandwidth for channel 1
M9384B-D21 RF bandwidth, 2 GHz with 256 MSa memory for frequency options F32 and F44
M9384B-D06 RF bandwidth, 500 MHz with 256 MSa memory for frequency options F32 and F44
M9384B-D11 RF bandwidth, 1 GHz with 256 MSa memory for frequency options F32 and F44
M9384B-D05 RF bandwidth, 500 MHz with 256 MSa memory for frequency options F14 and F20
M9384B-D10 RF bandwidth, 1 GHz with 256 MSa memory for frequency options F14 and F20
M9384B-D20 RF bandwidth, 2 GHz with 256 MSa memory for frequency options F14 and F20
M9384B-D2E RF bandwidth, 2 GHz, 256 MSa memory for frequency options F32 and F44, limited
Frequency range for channel 1
M9384B-F44 Frequency range, 1 MHz to 44 GHz
M9384B-F32 Frequency range, 1 MHz to 31.8 GHz
M9384B-F14 Frequency range, 1 MHz to 14 GHz
M9384B-F20 Frequency range, 1 MHz to 20 GHz
Analog modulation for channel 1
M9384B-PMR Pulse modulation
M9384B-PME Limited Pulse Modulation
M9384B-320 Pulse Train Generator (SCPI Only)
Output power for channel 1
M9384B-1EB High output power from 20 GHz to 44 GHz
M9384B-1EE High Output Power from 20 GHz to 43.5 GHz, limited above 43.5 GHz
Reference for channel 1
M9384B-600 Enhanced high performance reference
M9384B-500 High performance reference
General performance features for channel 1
M9384B-PCH Phase coherency for N channels
M9384B-1EH Improved harmonics below 2 GHz
M9384B-1ES Improved Signal to Noise Ratio (for 20 GHz and below)
Phase noise for channel 1
M9384B-ST6 Enhanced low phase noise
M9384B-ST5 Low phase noise
Vector system features for channel 1
M9384B-DIQ Differential IQ outputs
M9384B-EXT Wideband differential external IQ inputs
M9384B-M05 Baseband generator memory upgrade to 512 MSa
M9384B-M10 Baseband generator memory upgrade to 1024 MSa
M9384B-403 Calibrated AWGN
Channel 2
M9384B-002 Add channel 2
Frequency range for channel 2
M9384B-F44 Frequency range, 1 MHz to 44 GHz
M9384B-F32 Frequency range, 1 MHz to 31.8 GHz
M9384B-F14 Frequency range, 1 MHz to 14 GHz
M9384B-F20 Frequency range, 1 MHz to 20 GHz
Analog Modulation for channel 2
M9384B-PMR Pulse modulation
M9384B-PME Limited Pulse Modulation
M9384B-320 Pulse Train Generator (SCPI Only)
Output Power for channel 2
M9384B-1EB High output power from 20 GHz to 44 GHz
M9384B-1EE High Output Power from 20 GHz to 43.5 GHz, limited above 43.5 GHz
Bandwidth for channel 2
M9384B-D21 RF bandwidth, 2 GHz with 256 MSa memory for frequency options F32 and F44
M9384B-D06 RF bandwidth, 500 MHz with 256 MSa memory for frequency options F32 and F44
M9384B-D11 RF bandwidth, 1 GHz with 256 MSa memory for frequency options F32 and F44
M9384B-D05 RF bandwidth, 500 MHz with 256 MSa memory for frequency options F14 and F20
M9384B-D10 RF bandwidth, 1 GHz with 256 MSa memory for frequency options F14 and F20
M9384B-D20 RF bandwidth, 2 GHz with 256 MSa memory for frequency options F14 and F20
M9384B-D2E RF bandwidth, 2 GHz, 256 MSa memory for frequency options F32 and F44, limited
Reference for channel 2
M9384B-600 Enhanced high performance reference
M9384B-500 High performance reference
Phase Noise for channel 2
M9384B-ST6 Enhanced low phase noise
M9384B-ST5 Low phase noise
Vector system features for channel 2
M9384B-M05 Baseband generator memory upgrade to 512 MSa
M9384B-M10 Baseband generator memory upgrade to 1024 MSa
M9384B-403 Calibrated AWGN
General performance features for channel 2
M9384B-1EH Improved harmonics below 2 GHz
M9384B-1ES Improved Signal to Noise Ratio (for 20 GHz and below)
Accessories
1MSE001A Mouse
11900B Adapter 2.4 mm female to 2.4 mm female
11900C Adapter 2.4 mm male to 2.4 mm female
11901B Adapter 2.4 mm female to APC-3.5 female
11901D Adapter 2.4 mm female to APC-3.5mm male
11902B Adapter 2.4 mm female to APC-7
11903B Adapter 2.4 mm female to type-N female
11903D Adapter 2.4 mm female to type-N male
11904B Adapter 2.4 mm female to 2.92 mm female
11904D Adapter 2.4 mm female to 2.92 mm male
Y1164A Rack Mount Kit for M9384B
Y1165A Additional removable solid state drive (SSD) M9037A
83059C Coaxial Adapter, 3.5mm Male-Female
83059B Coaxial Adapter, 3.5mm Female-Female
Y1167A Channel bonding kit for VXG, 31.8, 44, or 54 GHz frequency options
Y1166A Channel bonding kit for VXG, 6, 8.5, 14, or 20 GHz frequency options
Other Software
N6171A MATLAB Software
Software with Subscription
N7600EMBC Signal Studio for W-CDMA/HSPA+, waveform playback
N7601EMBC Signal Studio for cdma2000/1xEV-DO, waveform playback
N7602EMBC Signal Studio for GSM/EDGE/Evo, waveform playback
N7606EMBC Signal Studio for Bluetooth, waveform playback
N7608EMBC Signal Studio Pro for Custom Modulation, waveform playback
N7609EMBC Signal Studio for Global Navigation Satellite System (GNSS), waveform playback
N7610EMBC Signal Studio for IoT, waveform playback
N7611EMBC Signal Studio for broadcast radio, waveform playback
N7612EMBC Signal Studio for TD-SCDMA/HSPA, waveform playback
N7615EMBC Signal Studio for mobile WiMAX, waveform playback
N7617EMBC Signal Studio for WLAN 802.11, waveform playback
N7621APPC PathWave Signal Generation for multitone and noise power ratio (NPR)
N7623EMBC Signal Studio for digital video, waveform playback
N7624EMBC Signal Studio for LTE/LTE-Advanced/LTE-A Pro FDD, waveform playback
N7625EMBC Signal Studio for LTE/LTE-Advanced TDD, waveform playback
N7631APPC PathWave signal generation for 5G NR, Embedded application
N7631EMBC Signal Studio Pro for 5G NR, waveform playback
N7640EMBC Signal Studio for LMR, waveform playback
N7642APPC PathWave signal generation for IQ based AM, FM, phase modulation
N7653APPC PathWave automatic channel response correction and S-parameter de-embedding
N7632EMBC PathWave Signal Generation for NR V2X, waveform playback
